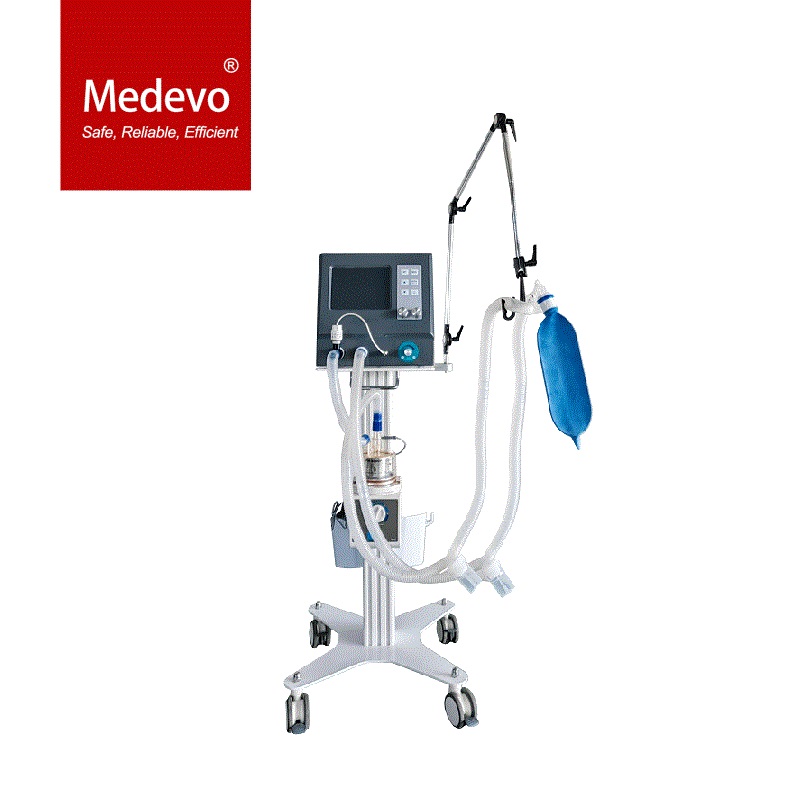

Medical Ventilator
Product Advantages
High quality, durable, steady & easy operation
Pneumatic driven electric control
High luminance digital 10.4" LCD screen
High end level humidifier
High quality tubes、accessories、spare partse
Optional: Back up UPS battery
Optional: Medical level air compressor
Product Details
Ventilator main unit:
Application: Adult、Pediatric
Driven mode: Pneumatic driven electric control
Working mode: Time switch
Respiratory mode: AVC、SIMV、PSV、SPONT、MMV、IPPV、SIGH、PEEP
Tidal volume: 50~2000mL
Frequency: 4~99bpm
SIMV Frequency: 4~60bpm
Inspiratory time (Ti): 0.2 ~6s
Respiration hold time(Tp): 0 to 2s
Trigger presure(Pt): -2kPa~ 0 kPa
PEEP presure: 0.1-2kPa
PSV pressure: 0 to 5kPa
Gas Presure: ≤ 12 kPa
Fio2 concentration:40%~100%
Alarm mute:≤120 seconds
Monitor parameter: Tidal volume、 Minute volume、 Total frequency、 Peak airway pressure、 PEEP、 l/E etc.
Alarming parameters: High airway pressure、Low airway pressure、Mv high、Mv low、Power failure、Gas failure
Power supply: AC 220V±10%,50Hz±1%
Gas input pressure: 0.28-0.6Mpa
Input power: 90VA
Noise: ≤65 dB(A)
System compliance: ≤4 ml/100Pa
Humidifier:
Temp. control adjustable
Over Temp. self protection function
